Patidar Machine Tools

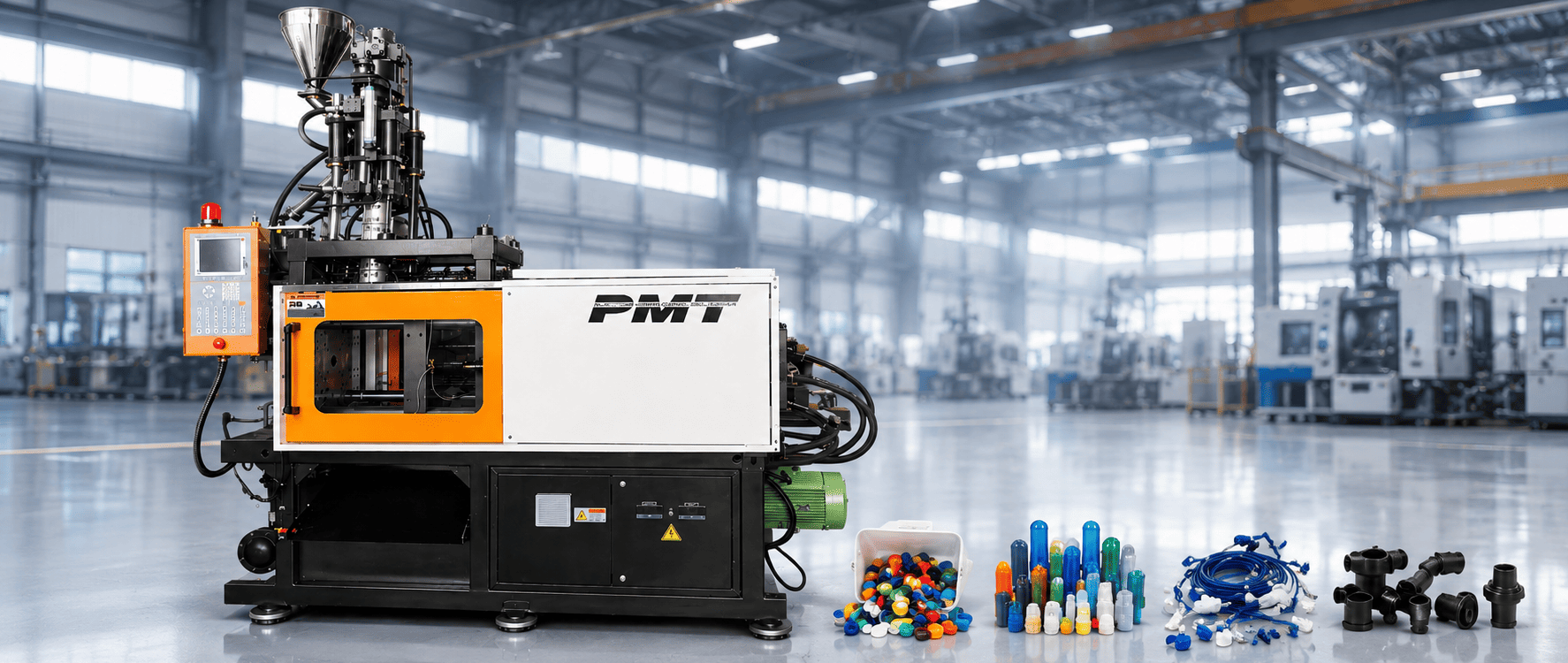

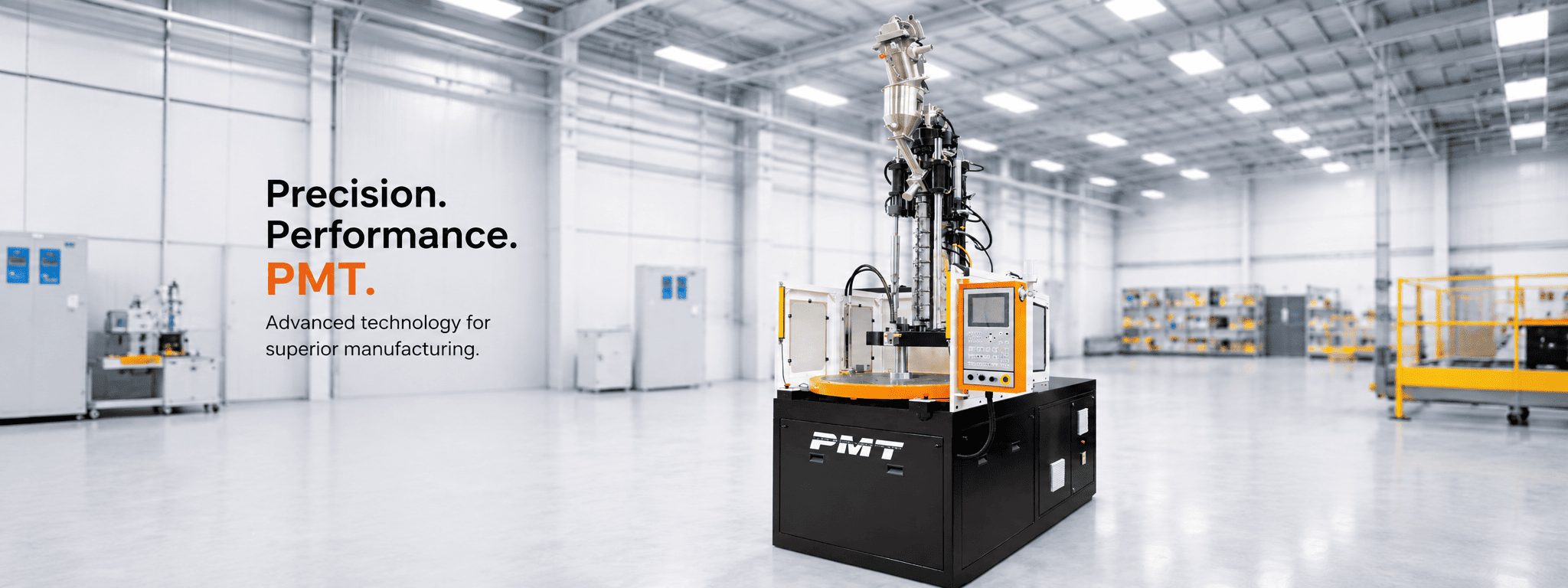

Vertical Injection Horizontal Toggle Clamping Machine

Description Unit PMT-VM-30
A B C
INJECTION UNIT
Screw Diametermm 202530
Screw L/D RatioL/D 252017
Shot Volumecm³ 396188
Shot Weight (PS)gms 314870
Injection Pressurebar 256016401150
Injection Rate Into Aircm3/s 264058
Screw Strokemm 125
Screw Speed Max.rpm 300
CLAMPING UNIT
Locking Forceton 30
Tie-Bar Distance (HxW)mm 205 x 255
Platen Size (HxV)mm 400 x 350
Opening Strokemm 180
Max. Mould Heightmm 300
Min. Mould Heightmm 125
Max. Day Lightmm 480
Ejector Strokemm 50
Ejector Forceton 1.75
Ejector Number no. 1
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 8.5
Heater Powerkw 3.5
Total Powerkw 12
Temp. Control Zones No. 3
GENERAL
Oil Tank CapacityL 125
Machine Dim. (LxWxH)M 2 x 0.8 x 2.2
Machine Weight Appx.T 2.1
Hopper CapacityL 15
Description Unit PMT-VM-60
A B C
INJECTION UNIT
Screw Diametermm 253035
Screw L/D RatioL/D 242017
Shot Volumecm³ 70105144
Shot Weight (PS)gms 5684115
Injection Pressurebar 224015701140
Injection Rate Into Aircm3/s 467096
Screw Strokemm 150
Screw Speed Max.rpm 300
CLAMPING UNIT
Locking Forceton 60
Tie-Bar Distance (HxW)mm 305 x 305
Platen Size (HxV)mm 470 x 470
Opening Strokemm 250
Max. Mould Heightmm 325
Min. Mould Heightmm 125
Max. Day Lightmm 575
Ejector Strokemm 65
Ejector Forceton 3.75
Ejector Number no. 1
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 11.5
Heater Powerkw 5
Total Powerkw 16.5
Temp. Control Zones No. 4
GENERAL
Oil Tank CapacityL 150
Machine Dim. (LxWxH)M 2.1 x 0.9 x 2.5
Machine Weight Appx.T 2.7
Hopper CapacityL 15
Description Unit PMT-VM-90
A B C
INJECTION UNIT
Screw Diametermm 303540
Screw L/D RatioL/D 232017.5
Shot Volumecm³ 141192251
Shot Weight (PS)gms 112153200
Injection Pressurebar 216015871215
Injection Rate Into Aircm3/s 5676100
Screw Strokemm 200
Screw Speed Max.rpm 275
CLAMPING UNIT
Locking Forceton 90
Tie-Bar Distance (HxW)mm 365 x 365
Platen Size (HxV)mm 550 x 550
Opening Strokemm 350
Max. Mould Heightmm 400
Min. Mould Heightmm 150
Max. Day Lightmm 710
Ejector Strokemm 90
Ejector Forceton 4.5
Ejector Number no. 5
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 17.5
Heater Powerkw 7.5
Total Powerkw 25
Temp. Control Zones No. 4
GENERAL
Oil Tank CapacityL 175
Machine Dim. (LxWxH)M 2.2 x 1 x 2.8
Machine Weight Appx.T 3.3
Hopper CapacityL 20
Description Unit PMT-VM-130
A B C
INJECTION UNIT
Screw Diametermm 354045
Screw L/D RatioL/D 22.52018
Shot Volumecm³ 240314397
Shot Weight (PS)gms 192251317
Injection Pressurebar 214018751295
Injection Rate Into Aircm3/s 96125158
Screw Strokemm 250
Screw Speed Max.rpm 250
CLAMPING UNIT
Locking Forceton 130
Tie-Bar Distance (HxW)mm 425 x 425
Platen Size (HxV)mm 640 x 640
Opening Strokemm 400
Max. Mould Heightmm 450
Min. Mould Heightmm 150
Max. Day Lightmm 850
Ejector Strokemm 110
Ejector Forceton 4.5
Ejector Number no. 5
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 17.5
Heater Powerkw 11
Total Powerkw 28.5
Temp. Control Zones No. 5
GENERAL
Oil Tank CapacityL 200
Machine Dim. (LxWxH)M 2.6 x 1.1 x 3.1
Machine Weight Appx.T 4
Hopper CapacityL 20
