Patidar Machine Tools

Rotary Injection Moulding Machine

Description Unit PMT-VM-30R2
A B C
INJECTION UNIT
Screw Diametermm 202530
Screw L/D RatioL/D 252017
Shot Volumecm³ 396188
Shot Weight (PS)gms 314870
Injection Pressurebar 256016401150
Injection Rate Into Aircm3/s 264058
Screw Strokemm 125
Screw Speed Max.rpm 300
Nozzle Unit Strokemm 175
CLAMPING UNIT
Locking Forceton 30
Tie-Bar Distance (HxW)mm 425 x 335
Platen Size (HxV)mm 850
Opening Strokemm 250
Max. Mould sizemm 355 x 290
Min. Mould Heightmm 150
Max. Day Lightmm 400
Ejector Strokemm 100
Ejector Forceton 2.7
Ejector Number no. 1
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 8.5
Heater Powerkw 3.5
Total Powerkw 12
Temp. Control Zones No. 3
GENERAL
Oil Tank CapacityL 150
Machine Dim. (LxWxH)M 2.2 x 1.25 x 3.1
Machine Weight Appx.T 3
Hopper CapacityL 15

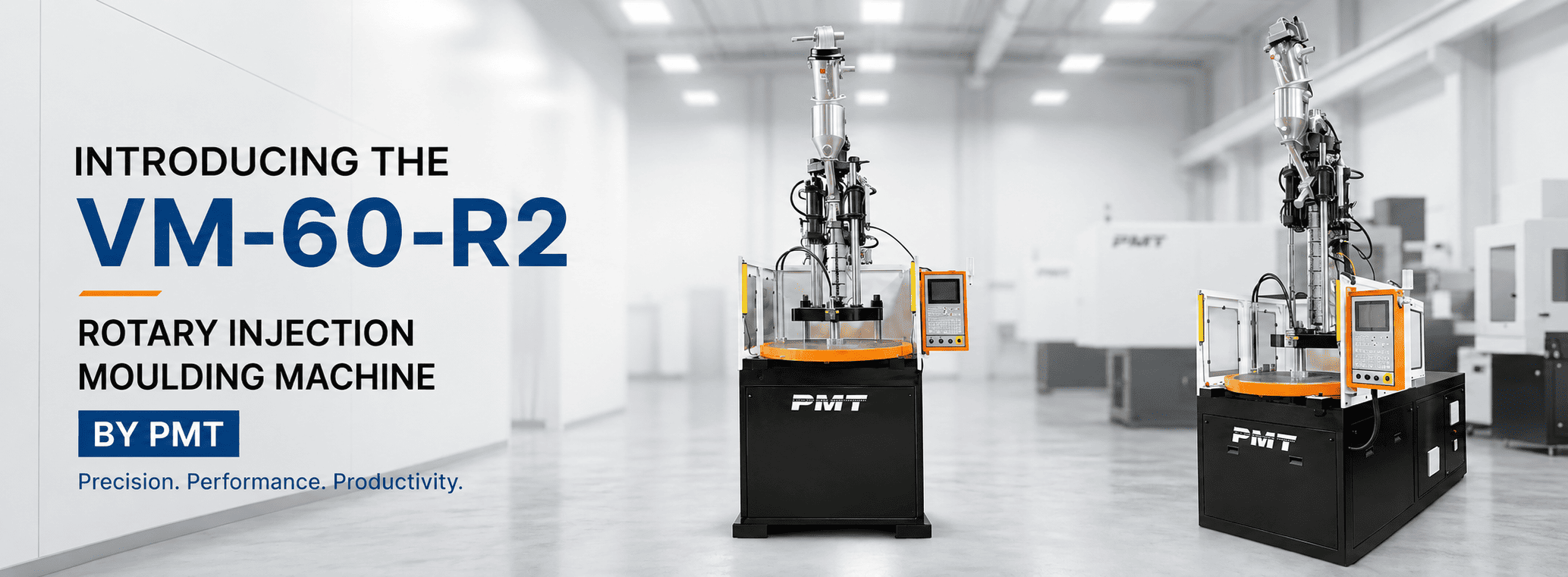

Description Unit PMT-VM-60R2
A B C
INJECTION UNIT
Screw Diametermm 253035
Screw L/D RatioL/D 242017
Shot Volumecm³ 70105144
Shot Weight (PS)gms 5684115
Injection Pressurebar 224015701140
Injection Rate Into Aircm3/s 709656
Screw Strokemm 150
Screw Speed Max.rpm 300
Nozzle Unit Strokemm 200
CLAMPING UNIT
Locking Forceton 60
Tie-Bar Distance (HxW)mm 545 x 415
Platen Size (HxV)mm 1000
Opening Strokemm 275
Max. Mould Sizemm 400 x 325
Min. Mould Heightmm 200
Max. Day Lightmm 475
Ejector Strokemm 150
Ejector Forceton 2.7
Ejector Number no. 1+4
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 11.5
Heater Powerkw 5
Total Powerkw 16.5
Temp. Control Zones No. 4
GENERAL
Oil Tank CapacityL 200
Machine Dim. (LxWxH)M 2.5 x 1.5 x 3.5
Machine Weight Appx.T 3.8
Hopper CapacityL 15
Description Unit PMT-VM-90R2
A B C
INJECTION UNIT
Screw Diametermm 303540
Screw L/D RatioL/D 232017.5
Shot Volumecm³ 141192251
Shot Weight (PS)gms 112153200
Injection Pressurebar 216015871215
Injection Rate Into Aircm3/s 5676100
Screw Strokemm 200
Screw Speed Max.rpm 275
Nozzle Unit Strokemm 250
CLAMPING UNIT
Locking Forceton 90
Tie-Bar Distance (HxW)mm 605 x 485
Platen Size (HxV)mm 1150
Opening Strokemm 300
Max. Mould Sizemm 500 x 400
Min. Mould Heightmm 225
Max. Day Lightmm 525
Ejector Strokemm 150
Ejector Forceton 5
Ejector Number no. 1+4
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 17.5
Heater Powerkw 7.5
Total Powerkw 25
Temp. Control Zones No. 4
GENERAL
Oil Tank CapacityL 250
Machine Dim. (LxWxH)M 2.75 x 1.65 x 4.2
Machine Weight Appx.T 5.2
Hopper CapacityL 20
Description Unit PMT-VM-130R2
A B C
INJECTION UNIT
Screw Diametermm 354045
Screw L/D RatioL/D 22.52018
Shot Volumecm³ 240314397
Shot Weight (PS)gms 192251317
Injection Pressurebar 214018751295
Injection Rate Into Aircm3/s 96125158
Screw Strokemm 250
Screw Speed Max.rpm 250
Nozzle Unit Strokemm 250
CLAMPING UNIT
Locking Forceton 130
Tie-Bar Distance (HxW)mm 645 x 530
Platen Size (HxV)mm 1250
Opening Strokemm 300
Max. Mould Sizemm 560 x 430
Min. Mould Heightmm 250
Max. Day Lightmm 550
Ejector Strokemm 150
Ejector Forceton 5
Ejector Number no. 1+4
ELECTRICAL UNIT
Pump Motor Power (Servo)kw 17.5
Heater Powerkw 11
Total Powerkw 28.5
Temp. Control Zones No. 5
GENERAL
Oil Tank CapacityL 280
Machine Dim. (LxWxH)M 3 x 1.75 x 4.35
Machine Weight Appx.T 6.5
Hopper CapacityL 20
